What is Induction Heating and How Do Induction Coils Work?

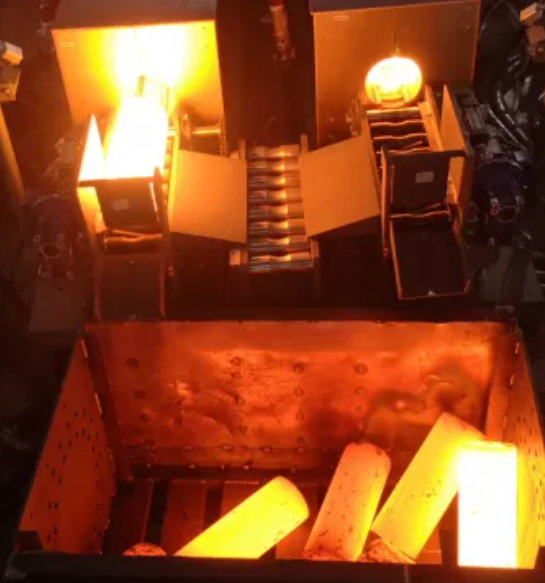

Induction heating is a fast, efficient, and non-contact method of heating electrically conductive materials—most commonly metals. It is widely used in industrial processes such as hardening, brazing, forging, and melting because it can deliver precise and localized heat without physical contact or an open flame.

At the core of this technology is electromagnetic induction: the same fundamental principle used in transformers and electric motors.

How Induction Heating Works

Induction heating begins when an alternating current (AC) flows through a specially designed copper coil, known as an induction coil. This current creates a rapidly changing magnetic field around the coil.

When a metal workpiece is placed inside or near this field, the magnetic flux passing through the metal constantly changes. This induces electrical currents inside the material, called eddy currents.

These eddy currents flow through the resistance of the metal and generate heat through electrical resistance (Joule heating). The process can be summarized as:

• Alternating current → magnetic field

• Changing magnetic field → induced currents in metal

• Electrical resistance → heat generation

Because the heat is generated directly inside the material, energy transfer is highly efficient and very fast.

The Role of the Induction Coil

The induction coil is the key component that makes the process possible. It acts as the primary source of the electromagnetic field.

Typically, induction coils are made from water-cooled copper tubing formed into different shapes depending on the application. Their design determines how the magnetic field is distributed and therefore where heat is generated on the workpiece.

What the coil actually does:

• Carries high-frequency alternating current

• Generates a strong alternating magnetic field

• Transfers energy into the workpiece without physical contact

The coil itself does not heat the object directly. Instead, it acts like the “primary winding” of a transformer, while the metal being heated behaves like a “secondary winding” where current is induced.

Why Coil Design Matters

The shape and structure of the induction coil strongly affect heating performance. Different coil designs are used depending on the part geometry and required heating pattern, such as:

• Helical coils (for shafts and rods)

• Pancake coils (for flat surfaces)

• Channel coils (for edges or specific zones)

Good coil design ensures:

• Uniform heating where needed

• Efficient energy transfer

• Reduced heating time

• Controlled heating depth

Key Physical Principles Behind the Process

Induction heating relies on three main physical effects:

• Electromagnetic induction: creates current in the workpiece

• Eddy currents: circulating currents that generate heat

• Skin effect: higher-frequency currents concentrate heat near the surface

Higher frequencies generally heat the surface more, while lower frequencies allow deeper penetration.

Advantages of Induction Heating

• No direct contact or flame

• Very fast heating response

• High energy efficiency

• Precise control of temperature and location

• Clean and repeatable process

Conclusion

Induction heating works by using an alternating magnetic field created by an induction coil to generate heat directly inside a metal workpiece. The coil itself acts as the energy transmitter, while the metal becomes the heating element through induced electrical currents.

This combination of electromagnetic physics and engineered coil design makes induction heating one of the most efficient modern industrial heating technologies.
