Solid Sucker Rod Long Bar Two Ends Induction Hot Forge

Share:

Two-End Induction Heating System for Long Solid Sucker Rods - Sucker rod used to transmit ground power to the oil pump when useing a rod pump to pump oil in oil industry.They are generally solid steel poles made of carbon steel or alloy steel,each about 8 meter long and connected with special couplings.Specially made hollow steel pipes are also used to pump oil which are called hollow oil sucker rods


Technical information

ItemSpecification
Heating ObjectSolid sucker rod, carbon/alloy steel
Rod Length6m–14m (customizable)
Heating PositionBoth ends simultaneously
Power Supply100kW–2000kW IGBT/MOSFET
Frequency Range0.5kHz–400kHz
Temperature ControlInfrared thermometer + PLC
Cooling SystemClosed-loop water cooling
AutomationFull auto loading/unloading (optional)
Control InterfaceTouch screen HMI + PLC system
Forging Press IntegrationOptional flat die or upset forging


   Request a Quote or Technical Consultation


This fully automated induction forging line ensures precise and efficient two-end heating of long solid sucker rods, typically used in oilfield applications. Here's how the system works:


Automatic Feeding

After the rod is pre-cut and prepared, it is automatically conveyed into the heating station.

A motorized roller or clamping system gently transports bars up to 8–14 meters in length into position.

The system features photoelectric sensors or positioning stops to detect the correct insertion point for accurate coil alignment.

This ensures safe, stable handling of long bars and consistent performance, even during high-volume operation.

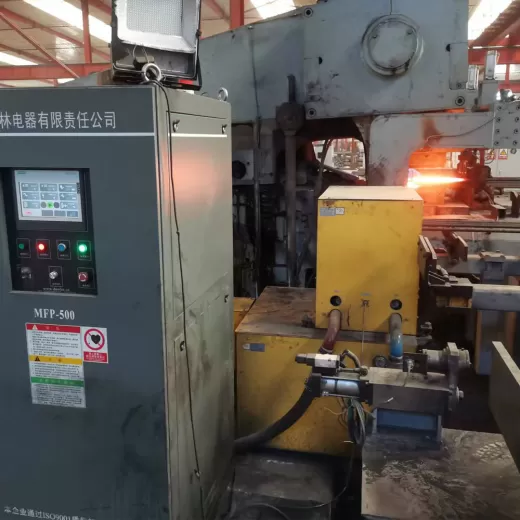

Two-End Induction Heating

Both ends of the sucker rod are simultaneously inserted into custom-designed C-type induction coils, which heat them to the required forging temperature (typically 1100–1250°C).

Dual independent induction power modules allow separate control of each end’s heating cycle.

Equipped with infrared pyrometers and a closed-loop temperature control system, the machine ensures real-time monitoring and precise temperature regulation.

IGBT-based technology ensures efficient energy use and stable high-frequency performance.


Hot Forging

Once both ends reach the target temperature, the rod is quickly transferred to a hydraulic press or flat die forging station for shaping.

Forging operations can include upsetting, flattening, or forming customized head shapes as per your part design.

Fast transfer reduces heat loss and improves forging consistency.

The press can be fully integrated and customized to meet different production needs and forge geometries.


Cooling and Unloading

After forging, the rod is automatically moved to a cooling section, which may use air or water cooling depending on the material and desired properties.

Cooling prevents distortion and controls the microstructure of the forged part.

Once cooled, an automatic unloading system organizes finished rods for collection or further processing such as straightening or surface inspection.

Product Description

Sucker steel rod production line Duolin design and produce for the customer, is fully automatic new hot forge line. Manual production process is slow,high labor cost and wouldn't get stable quality final products. The complete production line including transmission, PLC control, flat forging press, induction heating machine, C shape heating coil.

Duolin team responsible for whole turnkey production line, assemble, debug in factory installand run all the equipments in customer location, produce qualified sucker rod. Help customer operate the production line and train the workers, and support trouble shooting service and daily maintain.


Duolin, founded in 1994, is a trusted manufacturer of induction heating machines and solutions, with over 20 years of industry experience. Offering equipment with power ranges from 4-2000KW and frequencies from 0.5-400KHz, all products are designed by Duolin's expert engineering team and produced under strict ISO9001:2015 standards. As a high-tech enterprise, Duolin holds more than 20 national patents, providing energy-efficient and reliable induction heating systems for industries worldwide.


Duolin's induction heating solutions are widely used for applications such as carbon steel hot forginggear shaft hardeninglong bar heat treatmentpipe heating for hot bending, and non-ferrous metal heating like aluminum and copper. Since expanding internationally in 2007, Duolin has established agents in countries like Brazil, Germany, and India, with end users in over 15 countries, some of whom have been partners since 2009.


Any interesting in turnkey production line, contact us freely. Duolin will work for your needs 7 *24 hours.

FAQ

What is your nature of your company: Dealer or factory?

DUOLIN is an old brand for induction heating equipment in China. We have own factory,bought the land and built the factory, not rent. 79 employees, it is large-scale company in chinese induction heating machine factory.

How about the delivery time and stock?

We have machine in stock for HFP-20 and SSF model, need about one week for coil making, test the machine and package.

For medium frequency big power machine, it is the customized model, production time is around 1 month.

Which port for export?

We can send machine to any port in China, but normally Shenzhen, Shanghai, Ningbo, Guangzhou, we will arrange things under customer instruction.

How to install your machine?

Offer customer pictures, videos and document for installation. Engineer are available if customer need help to install in the factory.

What is your advantage?

International trade since 2009, manufacture induction heating machine since 1996, much experience in induction heating. All the products are research, design and develop by the Duolin engineer team, electric engineer, mechanical engineer, coil design engineer, application engineer..

Which countries your products are exported to?

More than 56 countries installed more than 3000 set machine, agent in 10 countries.
