Long Bar Heat Treatment Machine
Induction continuous heat treatment equipment for long bar heat treatment is a high-tech technology developed by applying induction heating technology. Thread rod induction hardening and tempering production line with low frequency or high frequency induction power supply is currently in leading technology and mature stage in China. The final products are widely used in some construction key projects, such as cross-sea bridge, nuclear power construction, and Western Gas Project, wind energy railway construction etc.
Long bar heat Treating is induction heating for bar hardening and tempering. Heat treatments available by induction hardening and tempering system, process includes heating and quenching, tempering and stress Relieving.
Duolin long bar heat treating line can process bar diameter from 6-100mm, length from 1000-14000mm, meet small & big production capacity.
Long Bar Induction Heat Treatment Machine
Application: Continuous hardening and tempering
Part: long bar, threaded rod,tube,pipe
Size: 6-120mm
Length: 1000-14000
Grade: 8.8, 10.9, 12.9
Material: Carbon steel, alloy steel
Feature
● Environmentally-friendly: Induction heat treatment production process, main power is electric and water, no pollution.
● High quality: Continuous hardening with fast speed avoids oxidation & decarburization. So the quality of product improved.
● High efficiency: Fast heating speed to improve the production
● Easy to operate: Hardening, tempering and surface finishing is on line, fully automatic hardening and tempering production line by PLC, save labor and low investment.
Feature
1: Full Automatic Production Line,24 Hours Non-Stop Working,improve the productin
2: Improve the steel bar toughness and tensile strength after induction quenching and tempering
3: PLC control everything and stock the program for each diameter material bar
4: Improve the work environment,save labor and reduce waste of steel bar
5: Compare with mesh belt furnace,low cost when start the production line
6: One production line cover wide bar diameter range,only change the heating coils diameter
7: Fast heating from bar surface to center and heating temperature uniform
8: One thread bar heat treatment production line can cover Grade 8.8,10.9
9: All the parameter can be set on the program depending on the diameter
10: Stock the heat treatment receipe for reheating
11: Round bar and thread rod can be finish by same line
12: Can adapt both tiny output and continuous large output
| Diameter | Machine for hardening | Machine for Tempering |
| M6-12 | SSF60 | SSF30 |
| M14-20 | SSF80 | SSF50 |
| M22-M30 | SSF120 | SSF60 |
| M32-40 | SSF120 | SS80 |
| M42-50 | SSF-TR-160 | SSF120 |
| M52-60 | MFP-300D2 | MFP-160D2 |
| M60-70 | MFP-600D2 | MFP-300D2 |
 |  |  |
| Automatic Thread Bar Hardening And Tempering | Continuous Long Bar Induction Heat Treatment Production Line | MFP Frequency Converter |
 |  |  |
| Induction Hardening And Tempering Production Line | Layout | 12 mm Thread Bar Induction Tempering Machine |
 |  |  |
| Long Bar Induction Heat Treatment Equipment | Thread Bar Induction Tempering Unit | Steel Pipe Inductoin Hardening And Tempering |
Induction Heating Machine for Hot Piercing Process MFP 850
120kw Induction Heating Machine for Bar End Heating Before Forging
MFP 350D2 Automatic Induction Partial Forging Machine

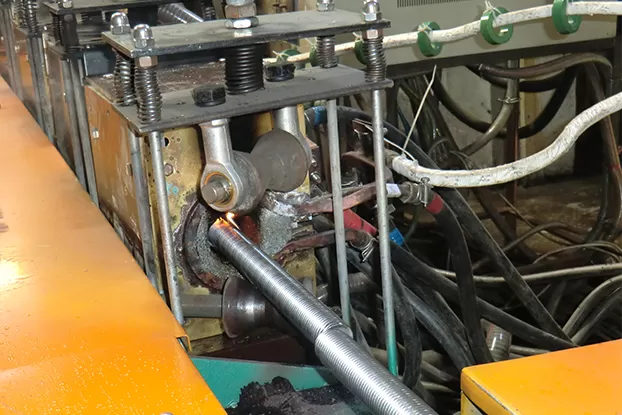

Threaded Bar Induction Hardening and Tempering
