How Does High Frequency Induction Heating Machine Work?

Dec. 24, 2024

High frequency induction heating machines are versatile tools used across industries for efficient and precise heating applications. They harness the principles of electromagnetic induction to heat electrically conductive materials. From forging and hardening to brazing and soldering, these machines are indispensable for many manufacturing processes. In this article, we’ll explore how high frequency induction heating machines work, their components, and their applications.

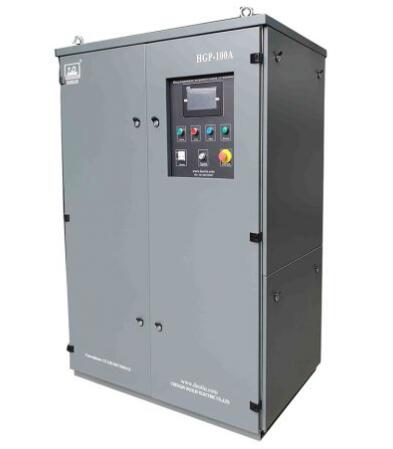

high frequency induction heating machine


The Principles of Electromagnetic Induction

High frequency induction heating is based on the scientific principle of electromagnetic induction, discovered by Michael Faraday. When an alternating current (AC) flows through a coil, it generates a magnetic field around it. If a conductive material is placed within this magnetic field, eddy currents are induced within the material. These currents generate heat due to the electrical resistance of the material.

The amount of heat produced depends on factors such as the electrical conductivity of the material, the strength of the magnetic field, and the frequency of the AC. High frequency currents, typically ranging from 10 kHz to 1 MHz, are used to achieve rapid and localized heating.


Components of a High Frequency Induction Heating Machine

Power Supply

The power supply generates the high-frequency alternating current necessary for the induction process. Modern induction heating machines use solid-state power supplies for efficient and reliable performance.

Induction Coil

The induction coil, also known as the work coil, is a critical component of the machine. It creates the magnetic field that induces eddy currents in the workpiece. Coils can be custom-designed to match the shape and size of the workpiece for optimal heating efficiency.

Workpiece

The workpiece is the material being heated. It must be electrically conductive for the induction process to work. Common materials include steel, copper, and aluminum.

Cooling System

Induction heating generates significant heat, not only in the workpiece but also in the coil and other machine components. Cooling systems, typically water-based, are used to maintain safe operating temperatures and ensure the longevity of the equipment.


The Induction Heating Process

Step 1: Preparation

The workpiece is positioned within or near the induction coil. The coil is designed to focus the magnetic field on the specific area that requires heating.

Step 2: Current Flow

The power supply sends a high-frequency alternating current through the coil. This creates a rapidly changing magnetic field around the coil.

Step 3: Induction of Eddy Currents

The magnetic field induces eddy currents in the workpiece. These currents flow in circular paths within the material, generating heat due to the material’s resistance.

Step 4: Heat Generation

The heat generated by the eddy currents quickly raises the temperature of the workpiece. The depth of heating can be controlled by adjusting the frequency of the AC; higher frequencies result in shallower heating, while lower frequencies penetrate deeper.

Step 5: Cooling and Finalization

After achieving the desired temperature, the workpiece may be cooled rapidly (quenching) or allowed to cool naturally, depending on the application. Quenching is often used in processes like hardening to alter the material’s mechanical properties.


Applications of High Frequency Induction Heating Machines

Heat Treatment

Induction heating is widely used for heat treatment processes such as hardening, annealing, and tempering. It provides precise control over temperature and heating depth, resulting in uniform and repeatable results.

Brazing and Soldering

Induction heating offers a clean and efficient method for joining metals. It provides localized heating, ensuring that only the joint area is heated while surrounding components remain unaffected.

Forging and Forming

In forging applications, induction heating quickly heats metals to the required temperature for shaping. This improves productivity and reduces energy consumption compared to traditional heating methods.

Shrink Fitting

Induction heating is used for shrink fitting, a process where a component is heated to expand and fit over another part. Once cooled, the component contracts to create a tight fit.

Bonding and Coating

In the automotive and electronics industries, induction heating is used for bonding and curing adhesives and coatings. It ensures rapid and uniform curing, enhancing product quality and efficiency.


Advantages of High Frequency Induction Heating

Speed: Induction heating is much faster than traditional heating methods, reducing processing times and increasing productivity.

Precision: The ability to target specific areas ensures minimal energy waste and reduced risk of overheating surrounding materials.

Energy Efficiency: Induction heating converts energy into heat with high efficiency, resulting in lower operating costs.

Clean and Safe: Induction heating produces no open flames or emissions, making it a safer and more environmentally friendly option.


Contact Us for Your Induction Heating Needs

High frequency induction heating machines are vital tools for efficient and precise heating in modern manufacturing. Understanding how they work can help you select the right equipment for your applications. If you’re looking for a reliable supplier or need assistance in choosing the best solution for your business, contact us today. Our experts are here to provide tailored advice and high-quality products to meet your requirements.
