Coil and Transformer

Coil and Transformer

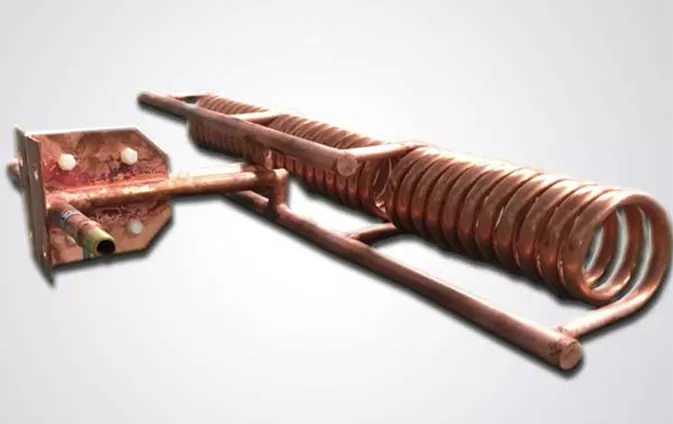

Coil Making Principles

Induction heating coil is the made by copper tube,put the heat parts inside to heat up by magnetic field.Depending on the dimension of heating job,shaped by the water-cooler copper tube for induction heating process,due to water flows inside the copper pipe,the condutor will not be heated.



The induction heating effect of the workpiece not only depends on the power of the induction heating machine, but also with the shape of the induction coil, the number of turns, the length of the copper tube, the workpiece material.



Shape and other factors are directly related to the equipment to get the most efficient use of power. Depending on the heating material and shape, design suitable heating coil is very important



The design of the induction loop should generally follow the following making principles:



1. First determine the heating purpose, quenching, forging or hot forming and welding  or heat treatment.

2. According to process requirements to determine the basic shape of the coil: round, rectangular, square,pan incense, irregular.

In General, round, square workpiece, the heating coil should be round or rectangular-based.

The welding process of the copper tube inductor according to the workpiece part of the shape of the design, the coil should be welded to the two kinds of workpiece at the same time heating.



3. Copper Used



In general, SSF-60-160 induction heating machine should be selected as ≥φ8mm copper tube or the corresponding area of the rectangular tube.

SSF ~ 50 should be selected ≥ φ5 copper tube or the corresponding area of the rectangular tube.

HFP ~ 20 should be selected ≥ φ3 copper tube or corresponding Area of the tube.

MFP series of induction heating equipment should be based on the work of equipment to determine the specific material.



4. The gap between the coil and the workpiece



Usually the heat transfer process should be based on the workpiece size, coil diameter and workpiece spacing should be controlled at 4 ~ 20mm; size bigger, the gap bigger.



Usually the quenching process should be based on the quenching depth of the workpiece, the coil diameter and workpiece spacing should be controlled in the 1.5 ~ 10mm; deeper depth,gap bigger.



5. The Inductance of the Coil

In general, the inductance of the company's ultrasonic equipment sensor should be controlled in the following range (the following data are data with no load)



SSF-30 ~ 50 equipment:

 0.7 ~ 1μH (transformer secondary single turn situation), primary total inductance (180-256μH);

SSF-60 equipment:

 0.8 ~ 1μH (transformer secondary single turn situation) primary total inductance (135-169μH);

SSF-80 equipment

0.8 ~ 1μH (transformer secondary single turn situation) primary total inductance (115-144μH);

SSF-120 equipment

0.8 ~ 1μH (transformer secondary single turn situation) primary total inductance (80-100μH);

SSF-160 equipment

 3.5 ~ 4μH (secondary secondary transformer case) primary total inductance (88-100μH);

HFP-20 equipment:

0.5 ~ 0.8μH (transformer secondary single turn situation), primary total inductance (200-320μH);



The secondary resonant device and the adjustable ratio machine can be used to determine the inductance parameter according to the configuration of the device.



6, The Use of Magnetic



Usually the quenching sensor can be added to the magnet, the material is copper, stainless steel and other magnetic metal can be added when the magnet can be added.



SSF, HFP, HGP and other high-frequency equipment should be selected ferrite material magnet. MFP equipment should be selected silicon steel sheet as a magnetic.



Above information support by Duolin,welcome to send us your heating purpose,we will make free coil and test for your heating requirements.

  • Transformer

    Transformer

    The function of transformer in induction heating is to achieve electromagnatic inductin heating through the transformer action.

  • Induction Heating Furnace

    Induction Heating Furnace

    Induction furnace is critical factor for induction heating process especially for induction hot forge,well designed induction tunnel furnace matching with induction heating power unit will improve the heating efficiency and reduce the oxide scale,therefore,ensure the good quality of hot forging parts.

  • Induction Coil&Inductor

    Induction Coil&Inductor

    With induction heating system, coil design will responsible for engineer who have more than ten year of experience in coil making.

Latest News

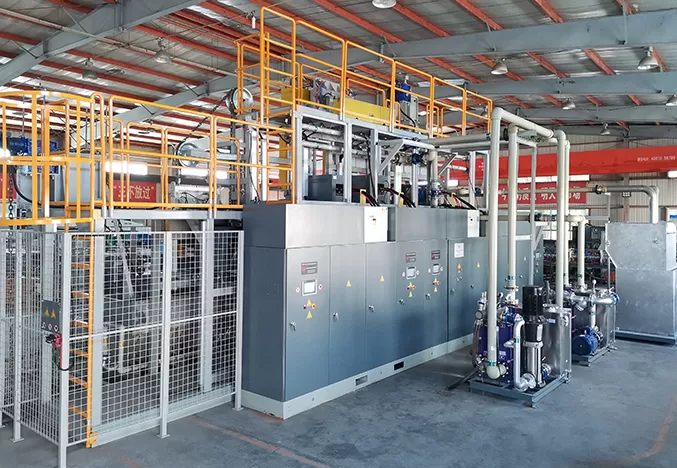

  • Induction Heating System For Bearing Ring
